Slot Diffuser Flush Mount for Drywall Ceiling - Gratka SHADOW

Name: Slot Diffuser Flush Mount for Drywall Ceiling - Gratka SHADOW
Brand: GRATKA
SKU: GRTK-SLIM-DIFFUSER-125-D
Price: 90.00 EUR
Availability: InStock

€90,00 EUR

Sale Sold out

Shipping calculated at checkout.

Elevate your interior with the Slot Diffuser Gratka SHADOW — where precision air distribution meets minimalist aesthetics. Specially engineered for natural ventilation, this hidden slot diffuser ensures constant, silent airflow while maintaining a healthy indoor climate. It is the ultimate choice for modern drywall and ceilings, offering a unique combination of a flush-mount profile and a seamless designer look.

Ceiling Type Stretch Drywall/Suspended

Airflow capacity 90 m³/h 150 m³/h Diffuser (Without motor)

👂

💨

125 mm

Dimensions & Installation

Installation Method: Flush Ceiling — Drywall
Mounting Depth: 110 mm
Duct size: 60х204 mm
Overall Dimensions WxHxL: 210x90x220 mm
Cable entry: Top
Weight: 1 kg

Technical Summary

Motor type: Ball Bearing Engine
Service life: > 30,000 hours
Protection Rating: IP44
Voltage / Frequency: 220–240 V / 50 Hz
Power Consumption: 18 W

FAQ

1. How do I clean or maintain the fan? Do I need to remove the ceiling if it breaks?

No ceiling dismantling is required! The decorative front panel is easily removable for quick cleaning. To access the fan motor or internal components, simply unsnap the locking ring. If the motor ever needs servicing or replacement in the future, the core unit can be extracted directly through the existing opening without touching the drywall finish.

2. How does the fan connect to the ventilation duct?

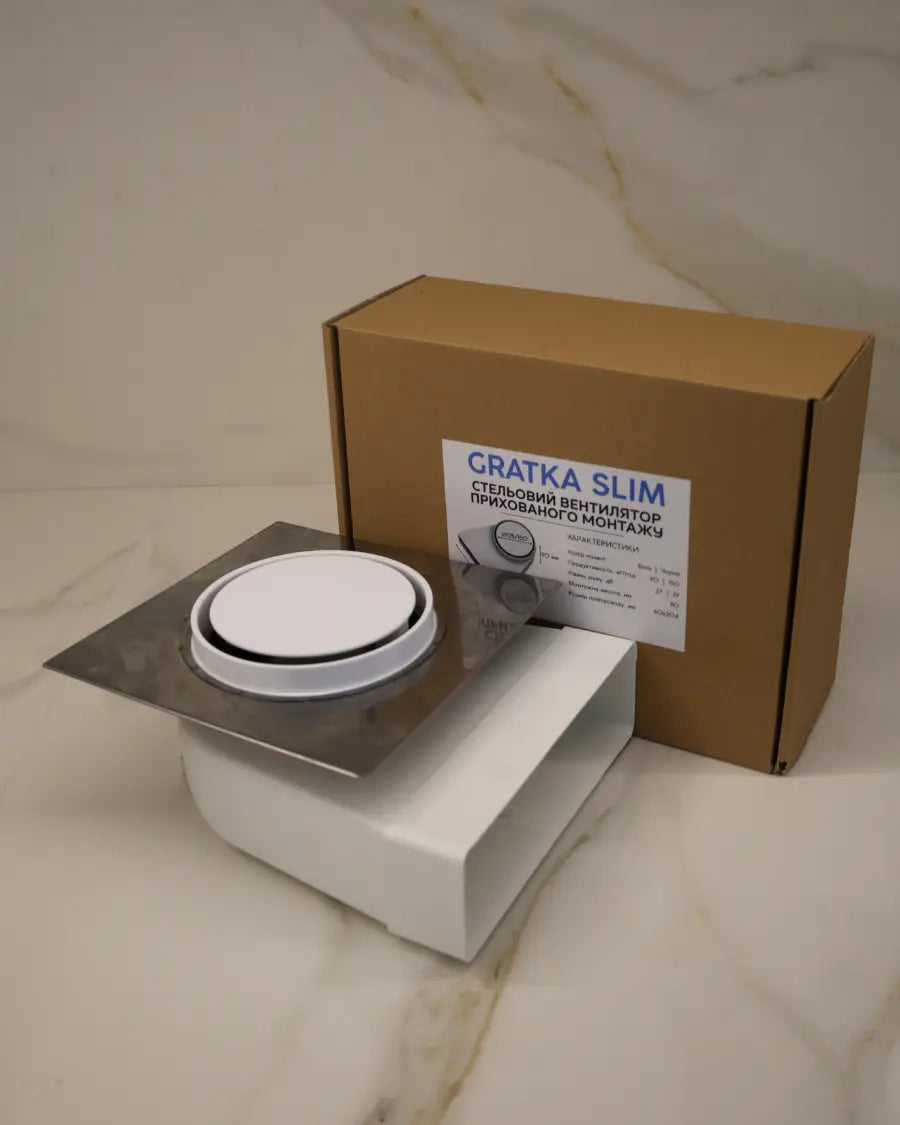

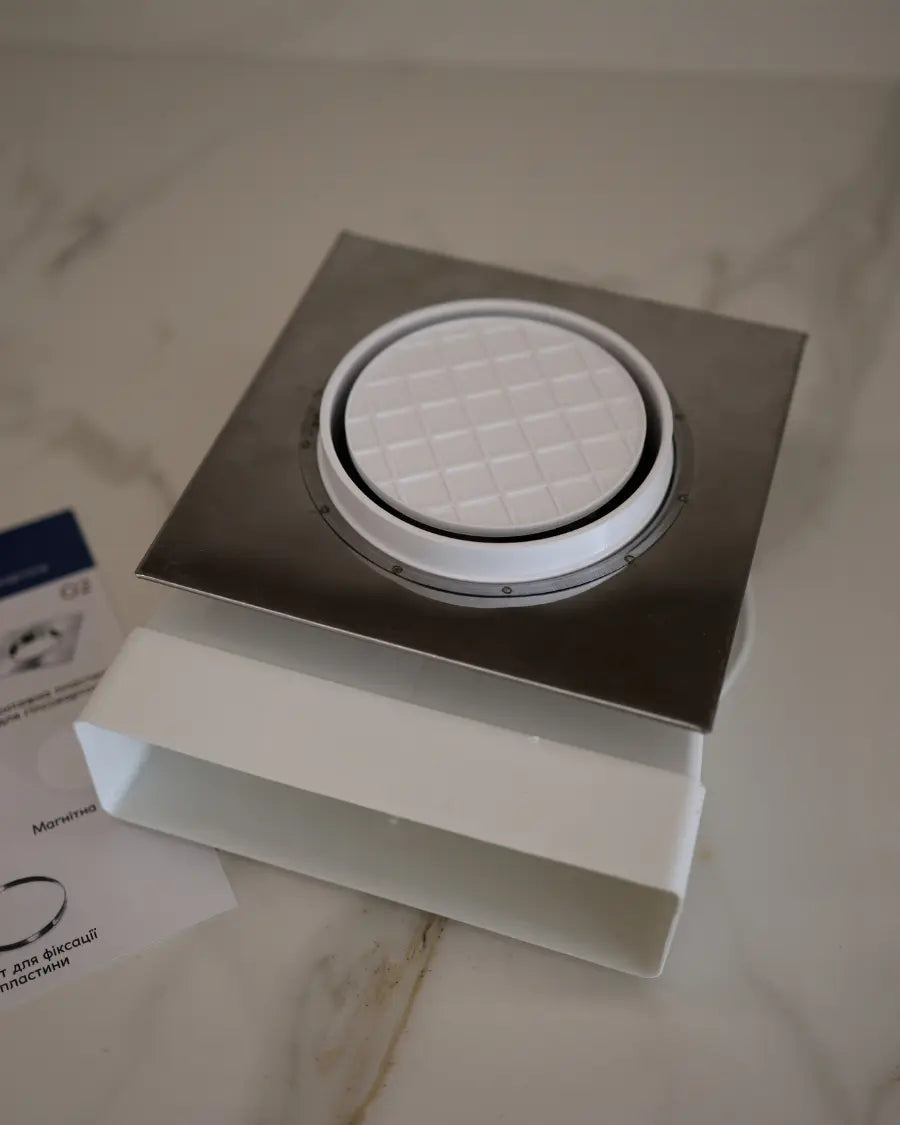

To achieve its ultra-low profile, the Gratka Slim is designed to connect directly into a standard flat rectangular plastic duct (60x204 mm). This direct connection eliminates the need for bulky round-to-flat adapters, which is exactly how the fan maintains its minimal mounting depth.

3. What type of motor is used inside? Is it reliable?

We use premium European-made motors from the renowned Bulgarian manufacturer, MMPmotors. These high-quality ball-bearing engines are specifically engineered for continuous operation, exceptional durability, and ultra-quiet performance.

4. What is the warranty on the Gratka Slim?

We stand completely behind the quality of our product and provide a full 3-year official manufacturer's warranty on the motor.

5. Is it safe to install directly above a shower or bathtub?

Yes, absolutely. The Gratka Slim features an IP44 protection rating, which means it is fully protected against water splashes from any direction, making it safe for bathroom zones.

View full details

What in the box?

Low-profile fan
Drywall Mounting Plate
Locking ring
Magnetic panel
Mounting Kit

1 5

Ultra-Low Profile

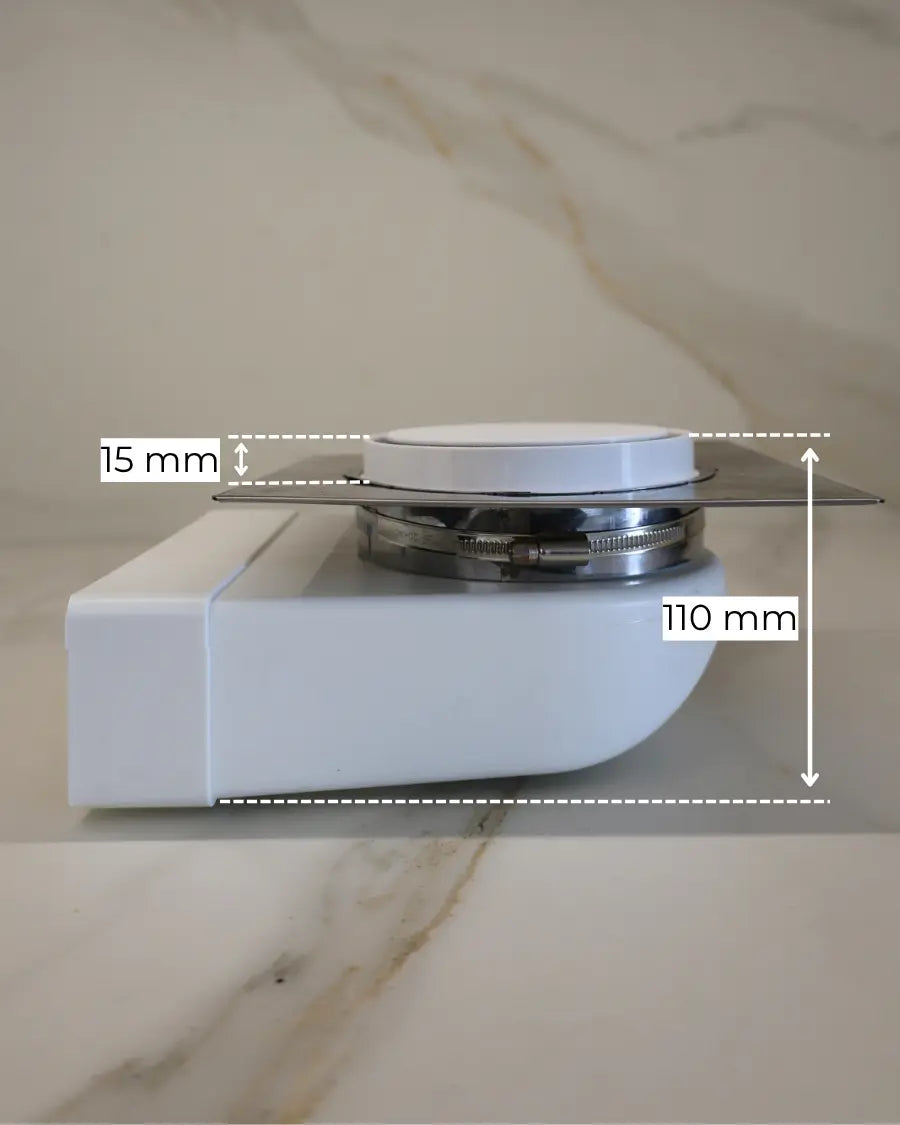

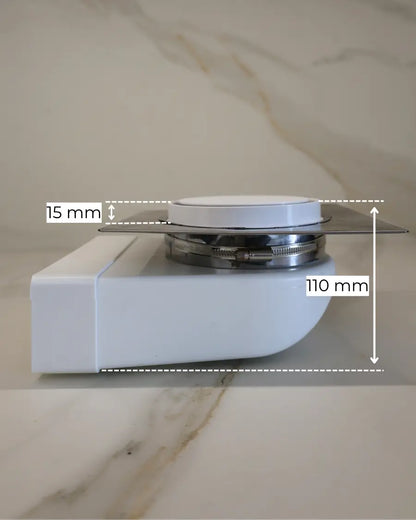

Maximize your room height with our shallow depth extractor fan. The Gratka Slim requires a minimum ceiling void of just 110 mm, delivering powerful hidden ventilation without the bulk.

Upgrade Your Interior

See the difference. Standard extractor fans draw unwanted attention, accumulate dust rings, and ruin the flawless look of your drywall and suspended ceilings. The Gratka Slim hidden exhaust fan changes everything.

How It Works

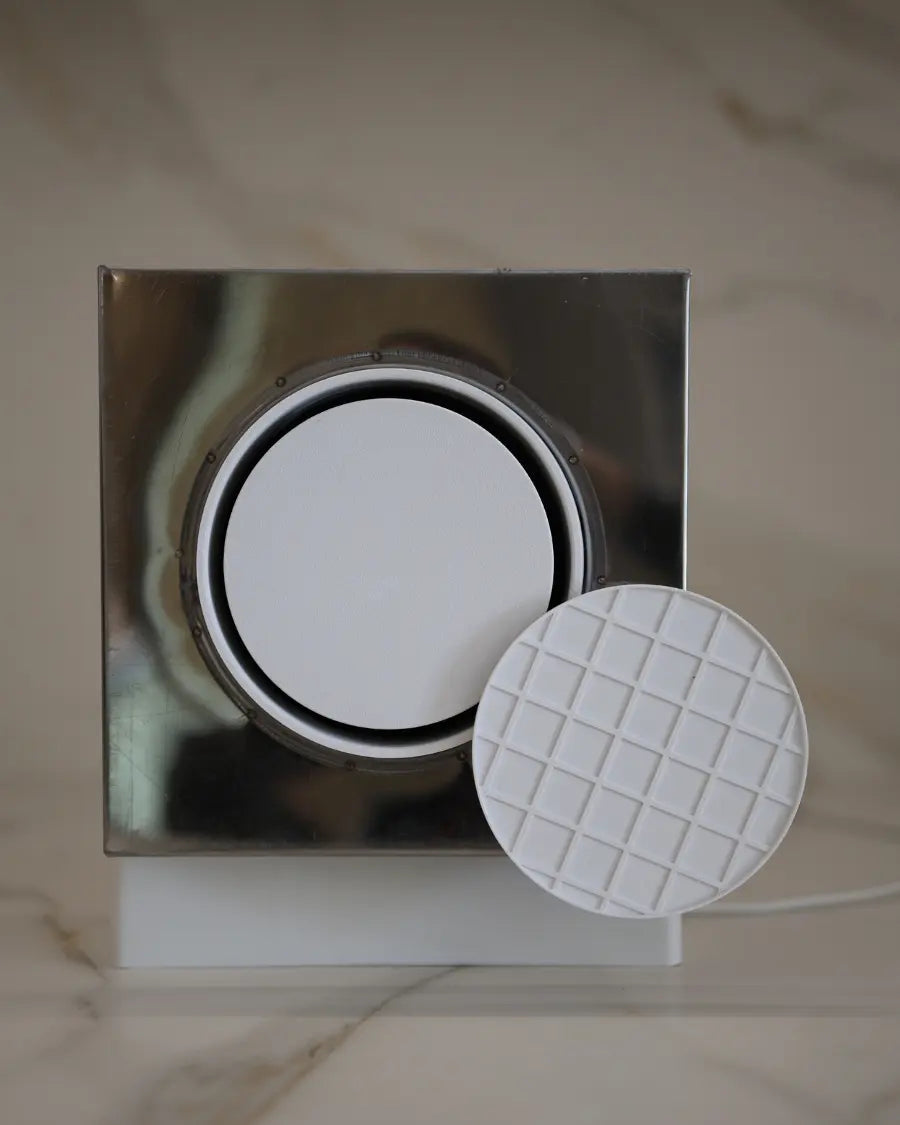

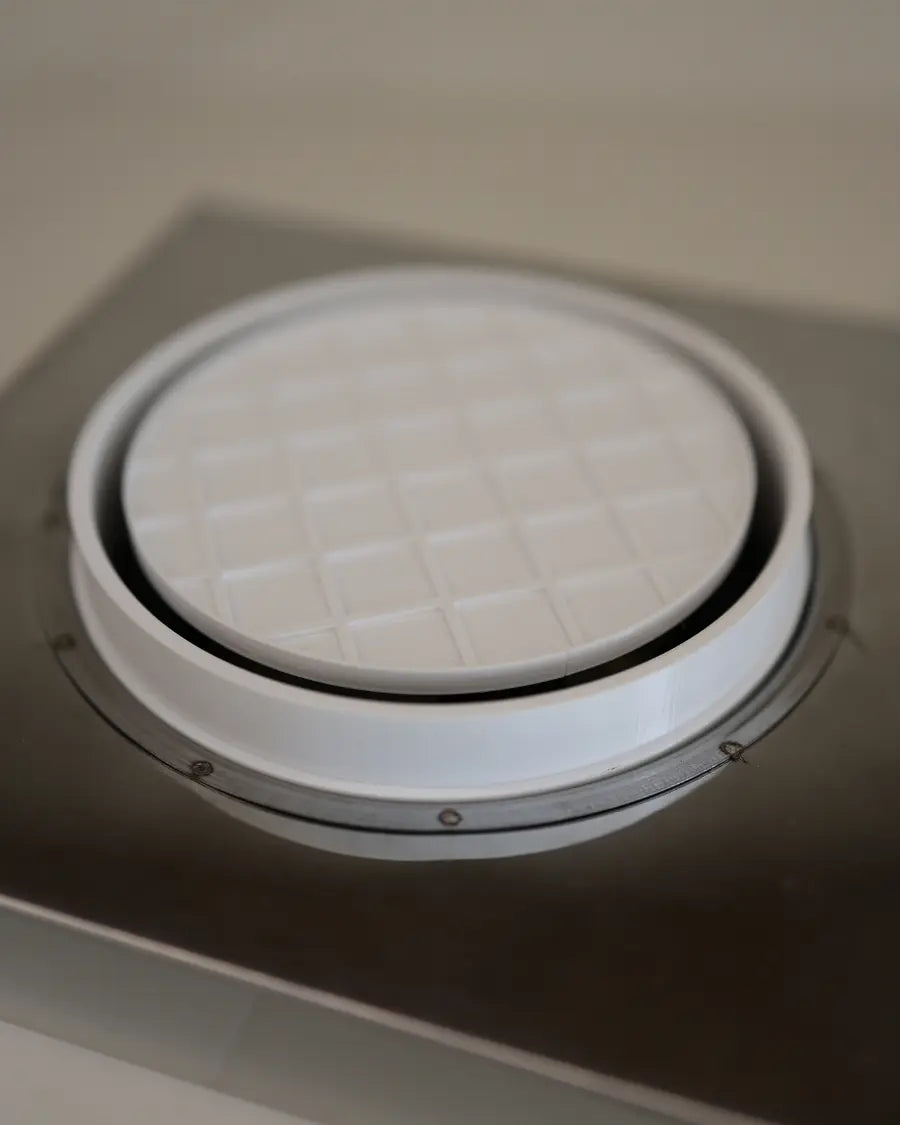

The quick-release magnetic panel and protective locking ring mean you can clean or replace the fan motor anytime. Full access, with zero risk of chipping the paint or damaging your pristine drywall ceiling.
