Hidden Exhaust Fan for Tile & Drywall - Gratka HIDE 100

€190,00 EUR

Sale Sold out

Shipping calculated at checkout.

Airflow capacity 93 m³/h 140 m³/h 315 m³/h Diffuser (Without motor)

Additional features Standart Humidity Sensor with Timer

Color: White

Installation Supplies

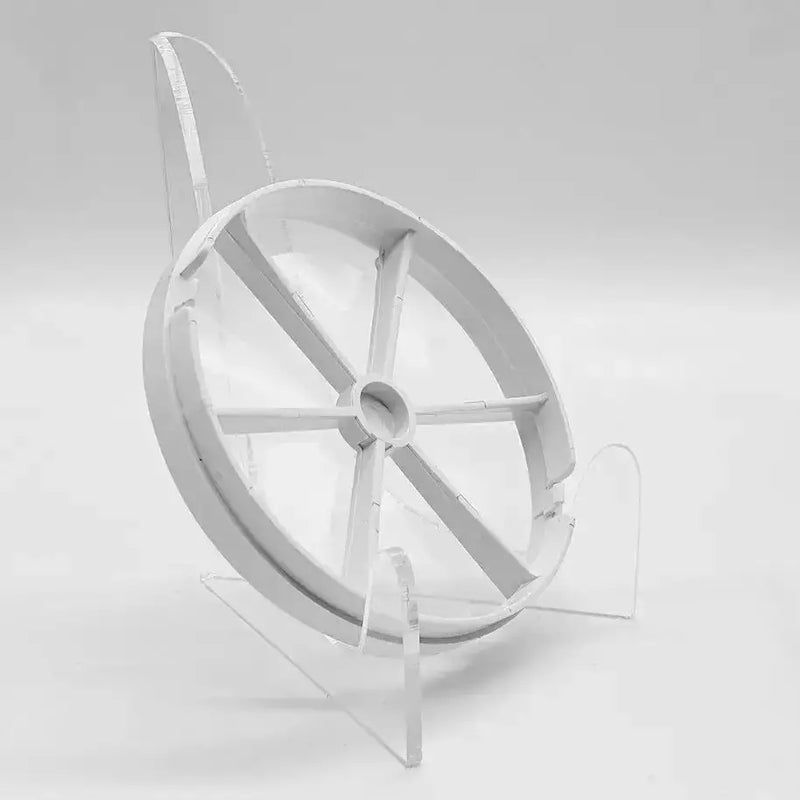

Non-return Valve

+€9,00

👂

26 dB

💨

93 m³/h

100 mm

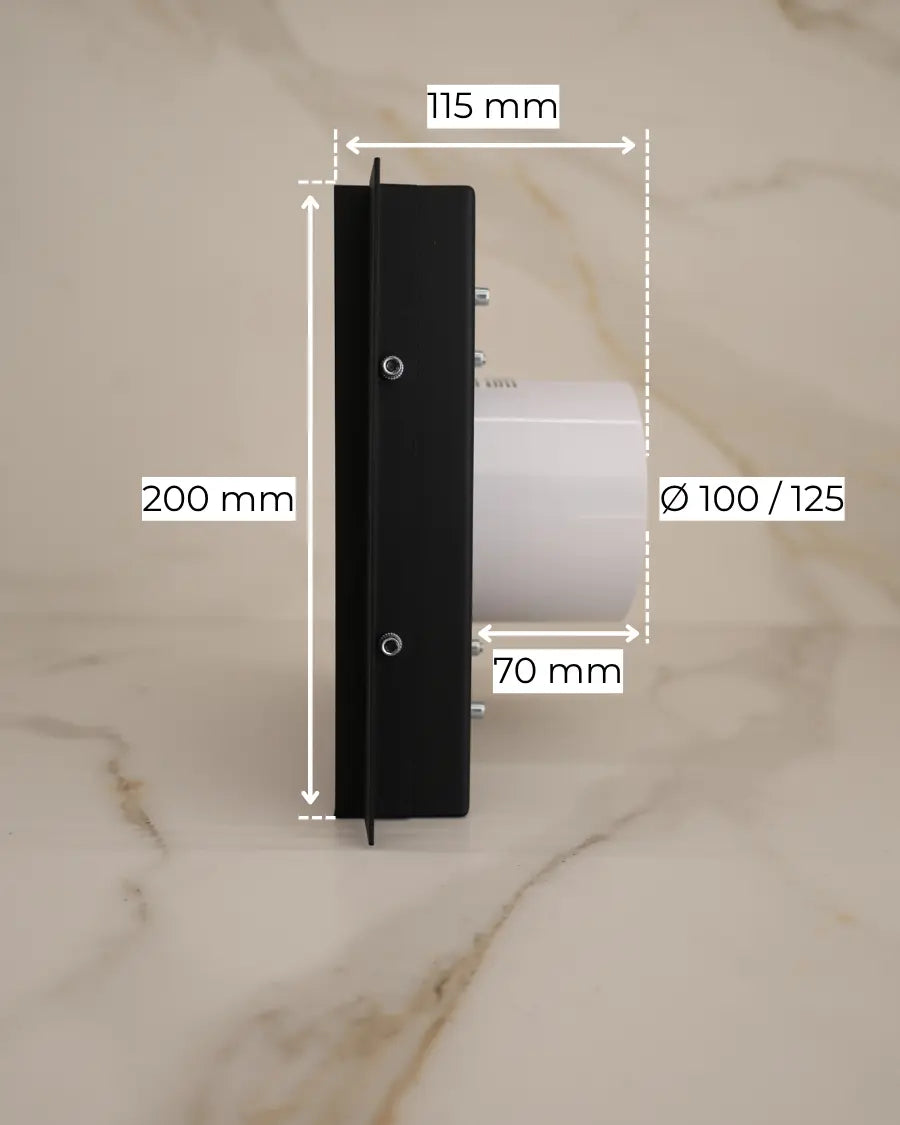

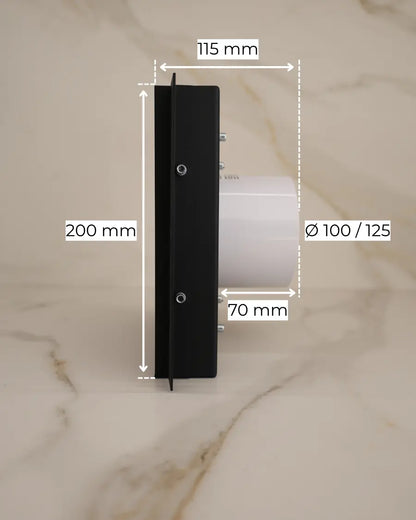

Dimensions & Installation

Installation Method: Flush Wall / Ceiling — Tile & Drywall
Mounting Depth: 95 mm
Duct size: 100 mm
Overall Dimensions WxHxL: 210x90x220 mm
Cable entry: Top
Weight: 1 kg

Technical Summary

Motor type: Ball Bearing Engine
Service life: > 30,000 hours
Protection Rating: IPX2
Voltage / Frequency: 220–240 V / 50 Hz
Power Consumption: 11 W

FAQ

1. Do I need to break the tile or dismantle the drywall for maintenance?

No, not at all! To access the fan or clean it, simply pull off the magnetic front panel. The motor unit can be easily extracted and serviced directly through the opening, completely preserving your beautiful tile or drywall finish.

2. What type of motor is used inside?

We use premium European-made motors from renowned brands like AirRoxy and Vents Quiet. These high-quality engines are specifically engineered for continuous operation, exceptional durability, and ultra-quiet performance.

3. What is the warranty on the Gratka Hide?

We stand completely behind the quality of our product and provide a full 3-year official manufacturer's warranty on the fan motor.

4. Is the fan protected against rust in a humid bathroom?

Yes, absolutely. The Gratka Hide base is built from galvanized steel specifically to prevent rust. Furthermore, it is coated with premium powder paint, providing a double layer of protection that keeps it flawless for decades even in highly humid environments.

View full details

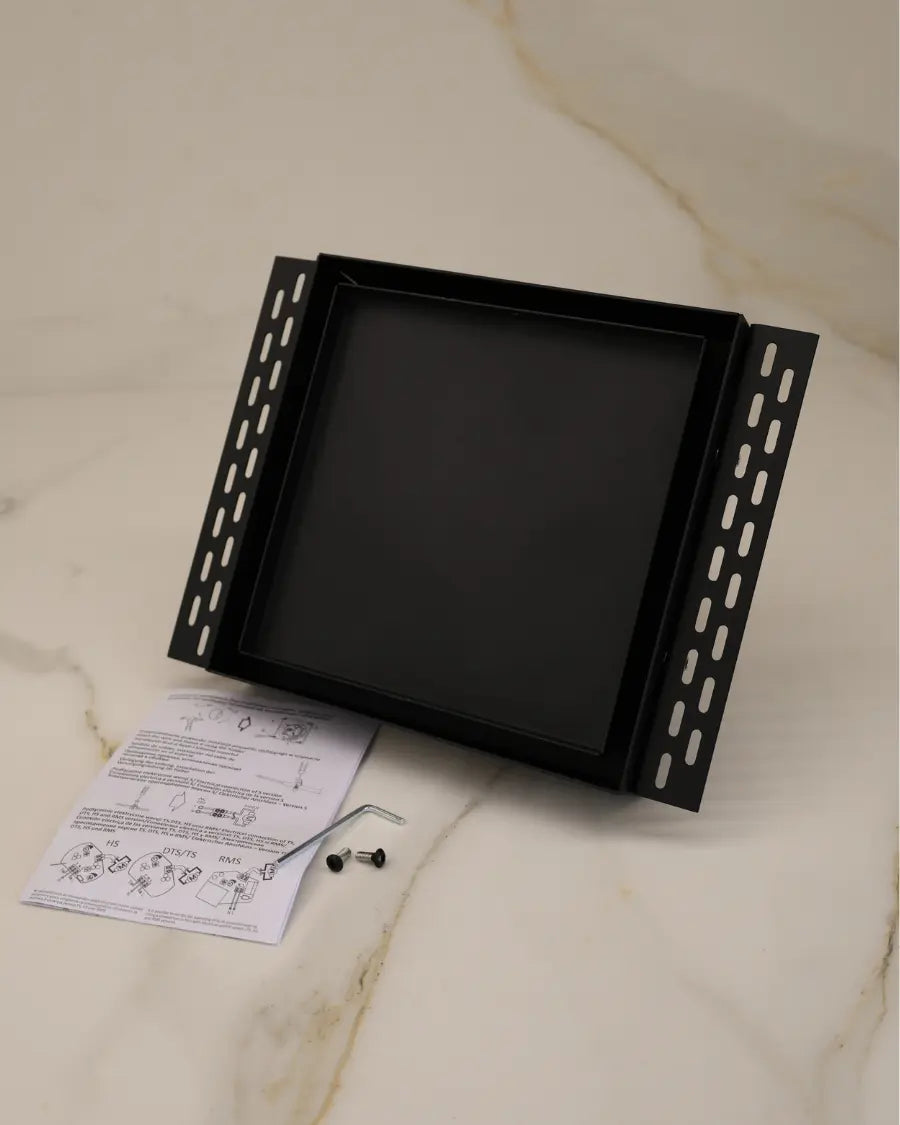

What in the box?

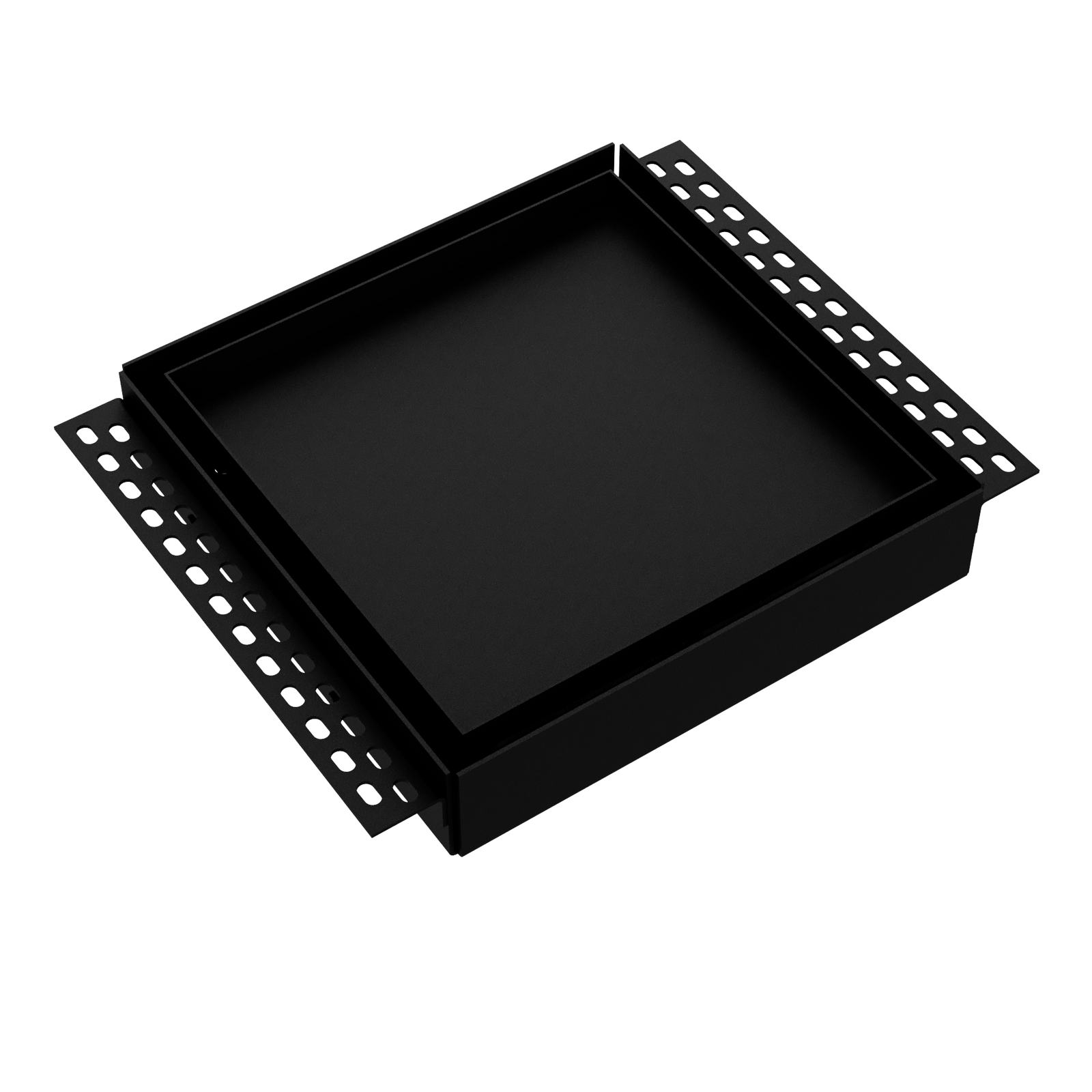

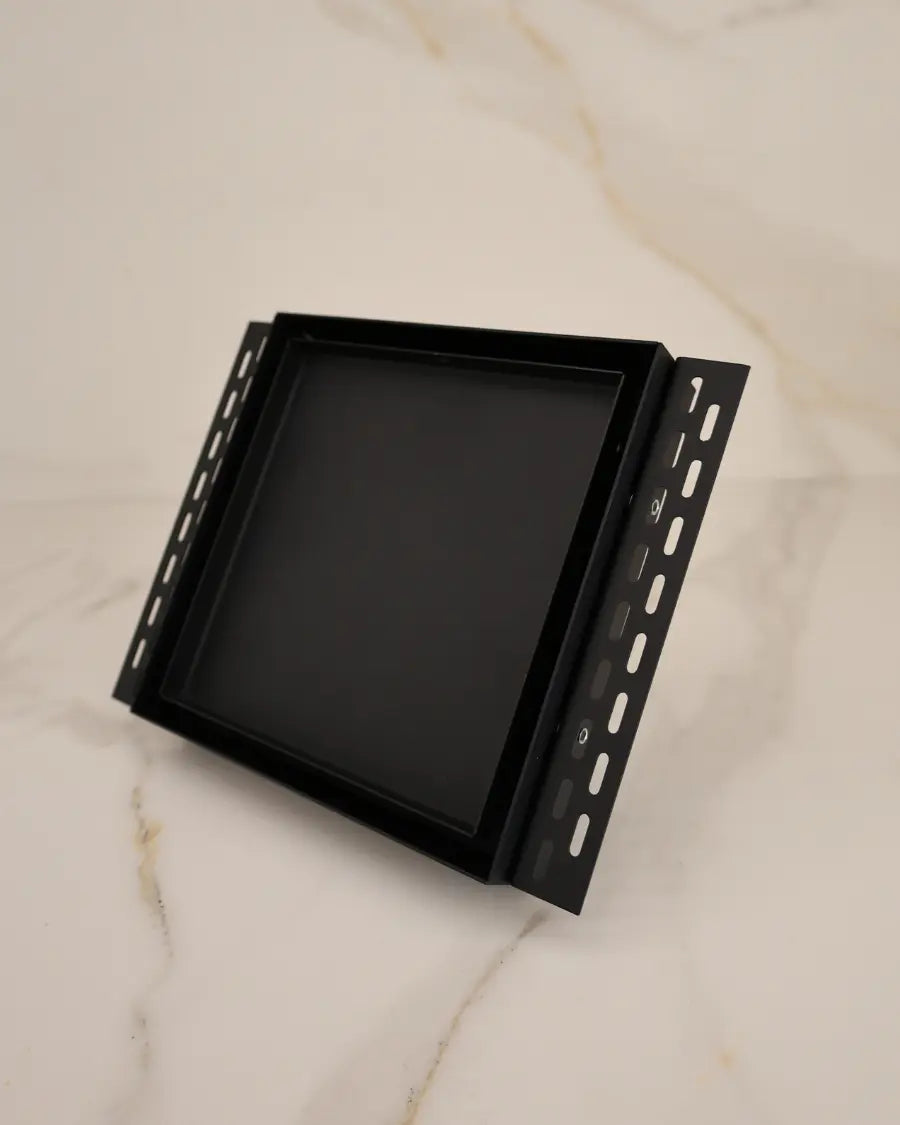

Flush-Mount Steel Frame
Ball-Bearing Extractor Fan

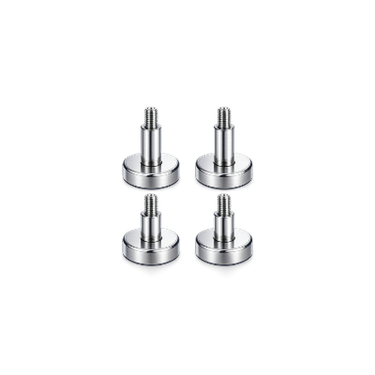

4x Adjustable Neodymium Magnets

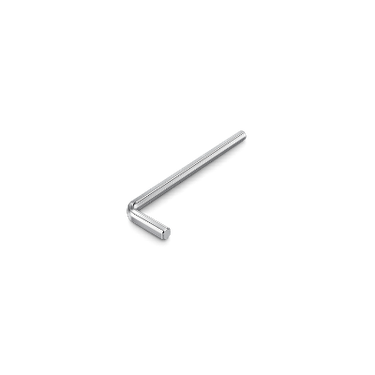

L-Shaped Hex Key

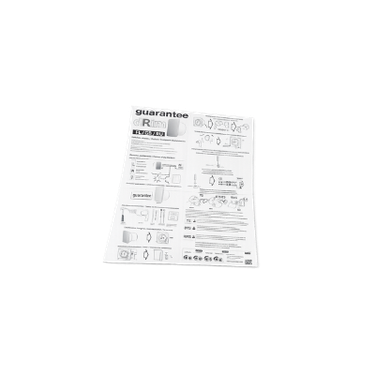

Brand Warranty / Installation Guide

1 5

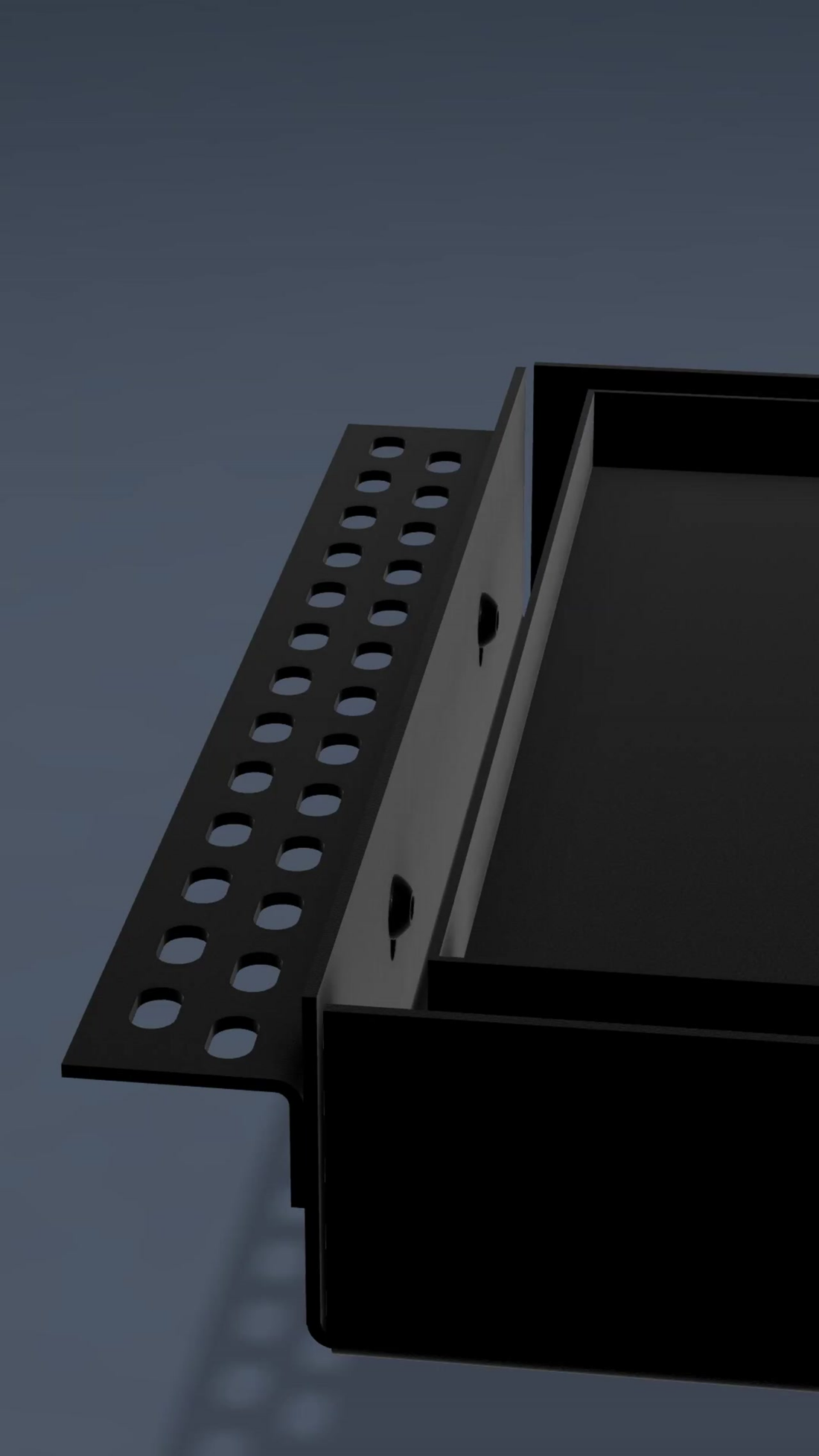

One Solution. For Any Surface.

Seamlessly integrate ventilation into tile, drywall, MDF, chipboard, or HPL panels. Adjustable from 12 to 20 mm in depth, it ensures a perfectly flush, seamless finish regardless of the material thickness.

How it works

How it works

Flush Mount

Flawless minimalism. The device is mounted flush with the surface, leaving only an elegant shadow gap visible for air intake.

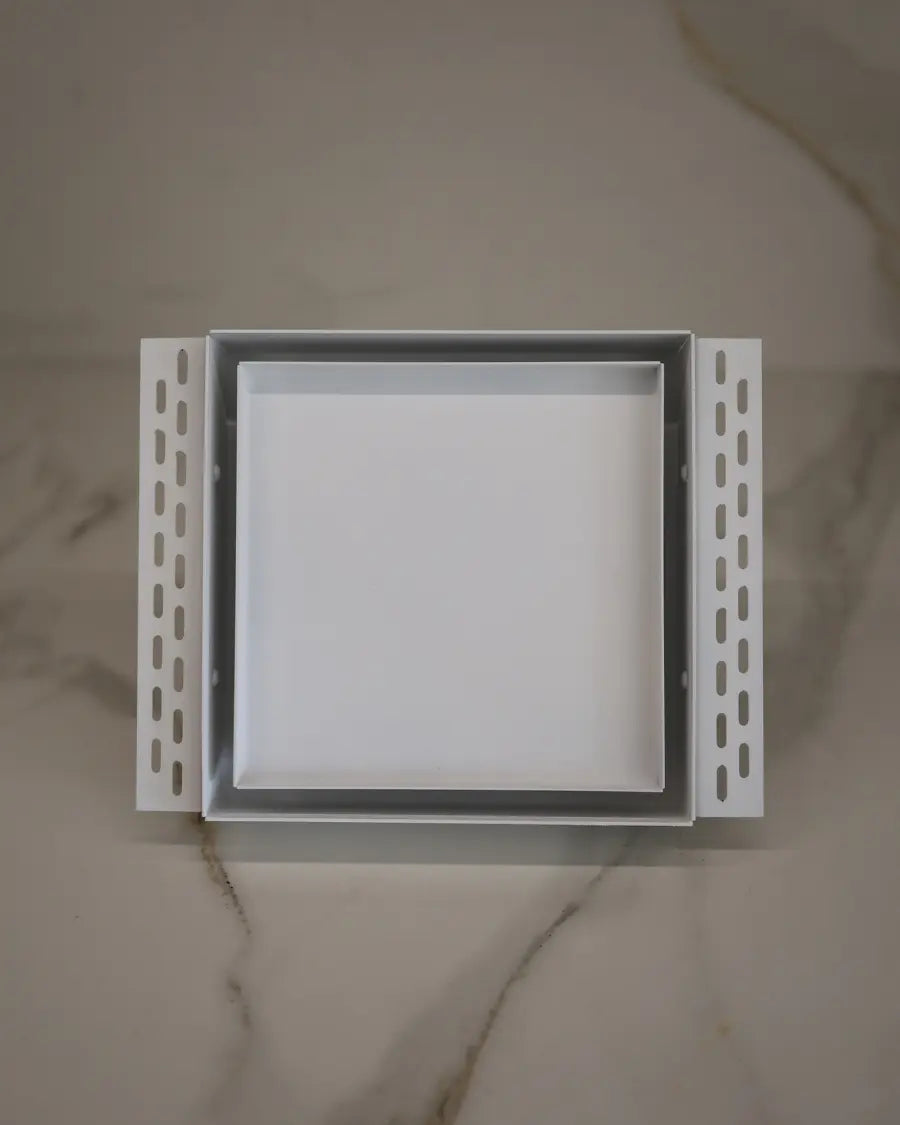

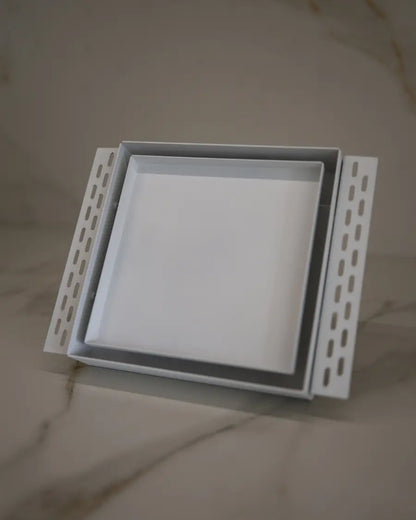

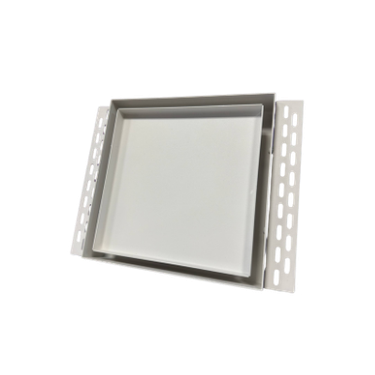

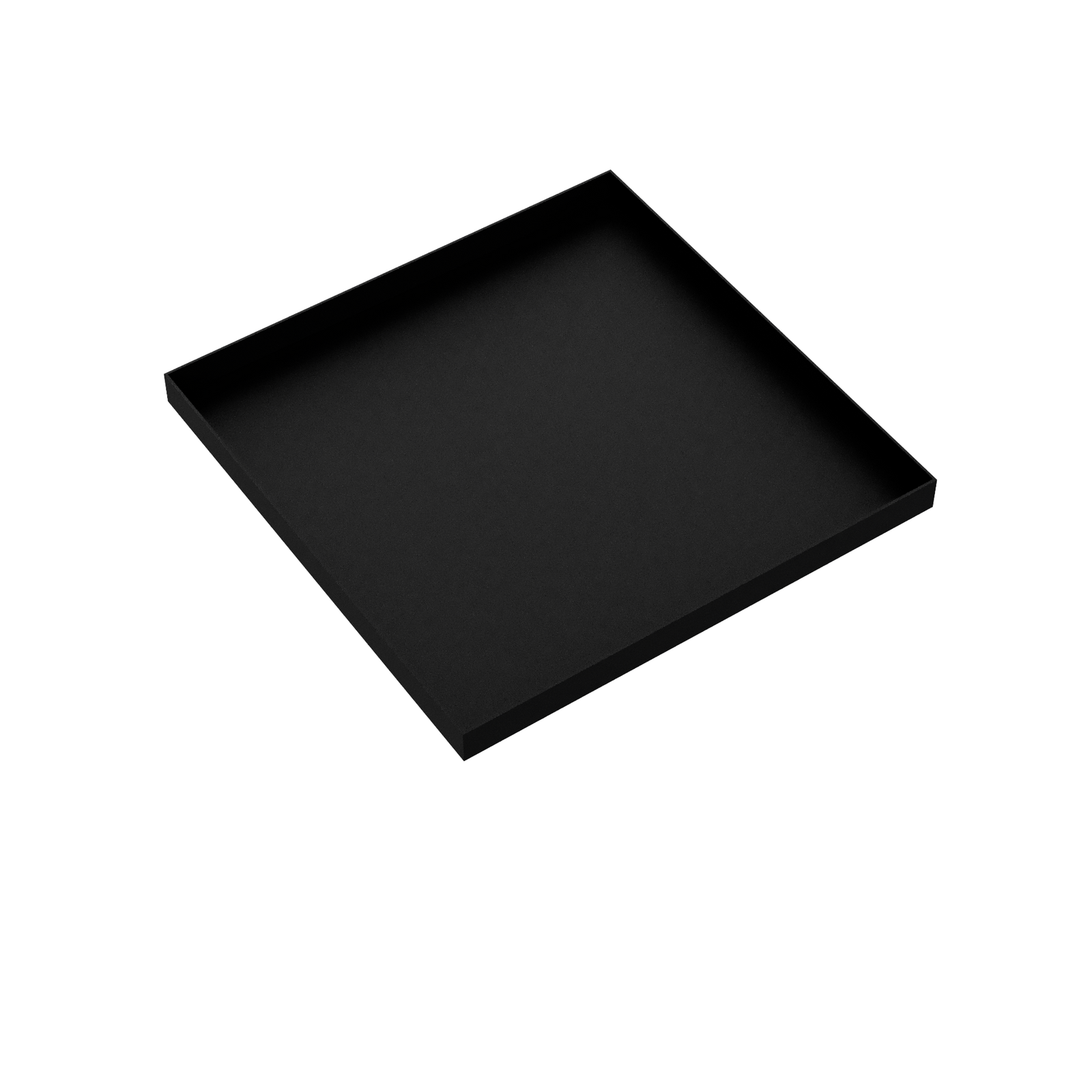

Invisible Panel

The metal tray is designed for absolute invisibility. Insert porcelain stoneware, MDF, or drywall inside, and paint it to perfectly match your finish.

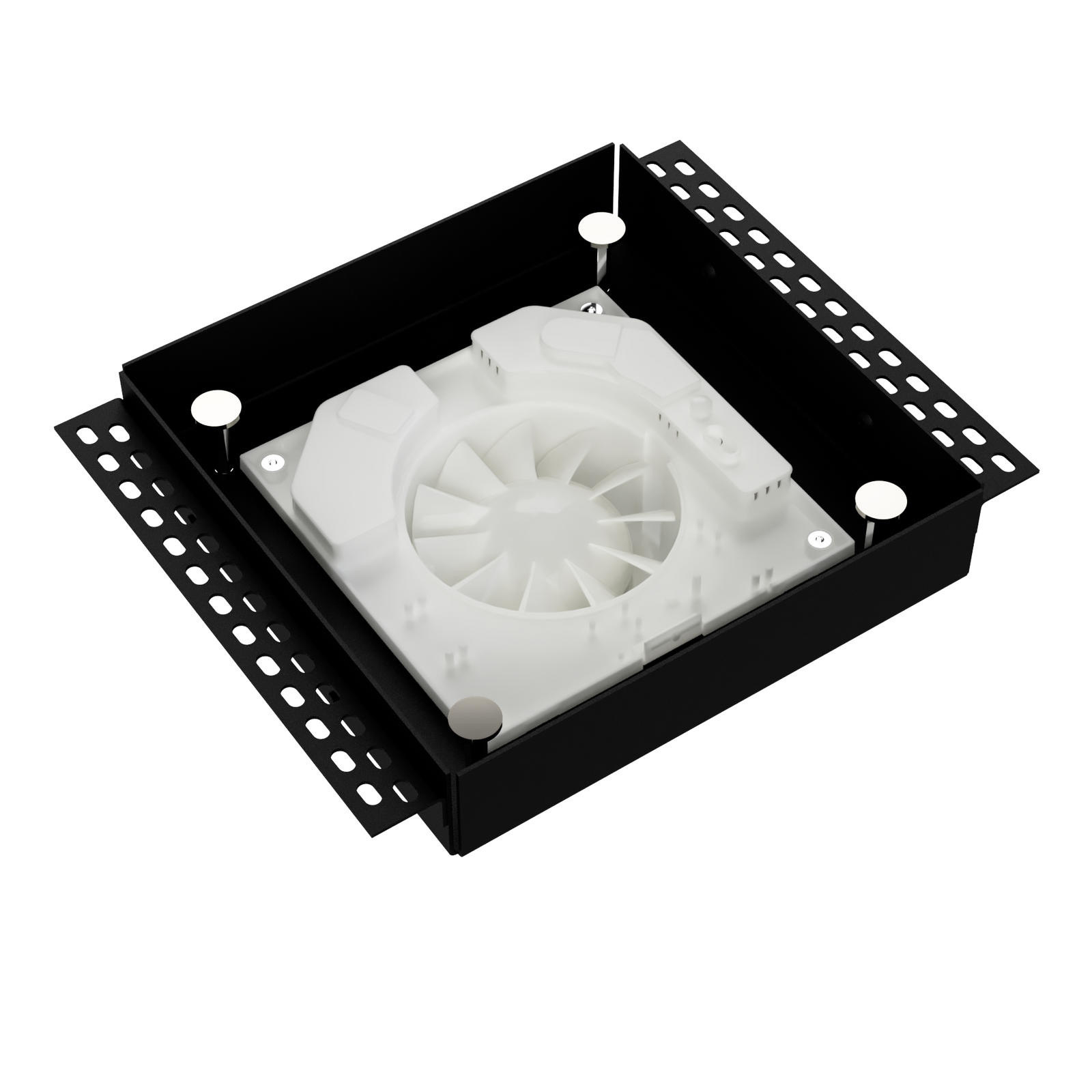

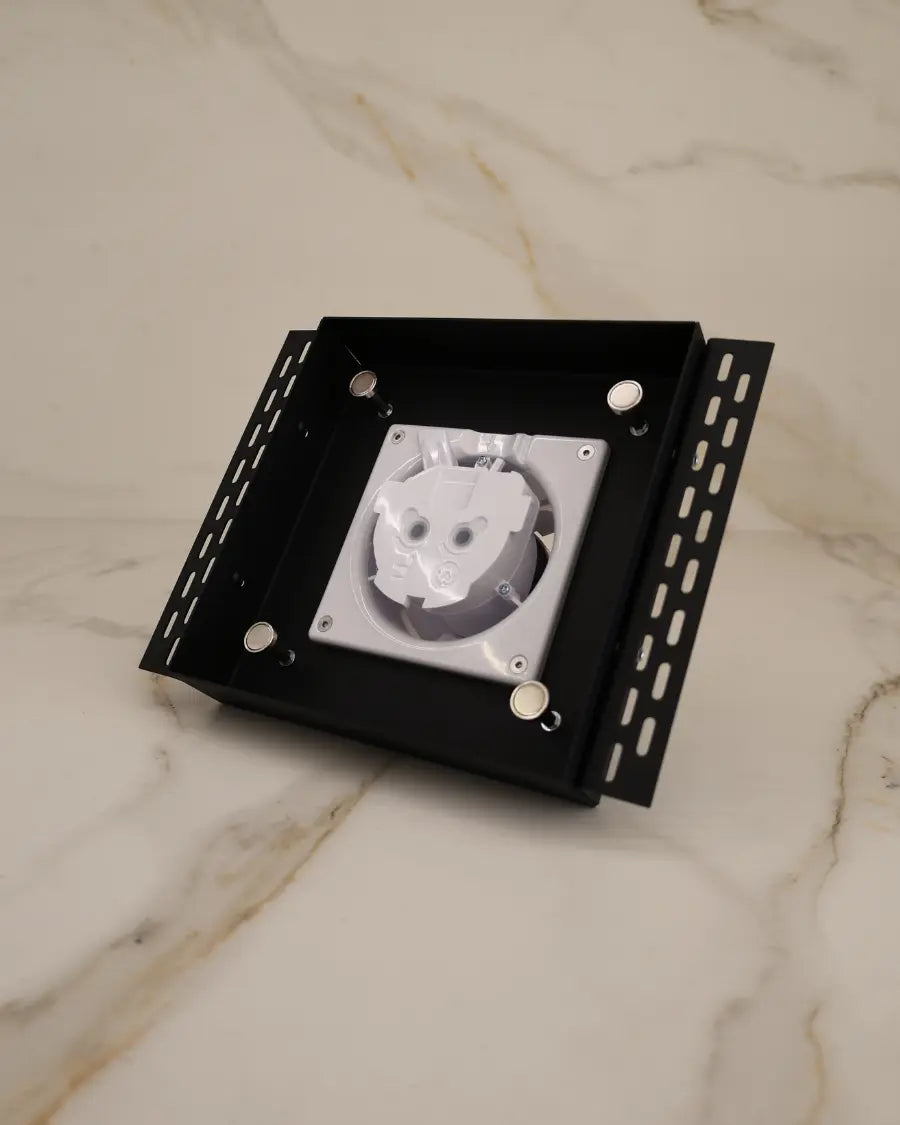

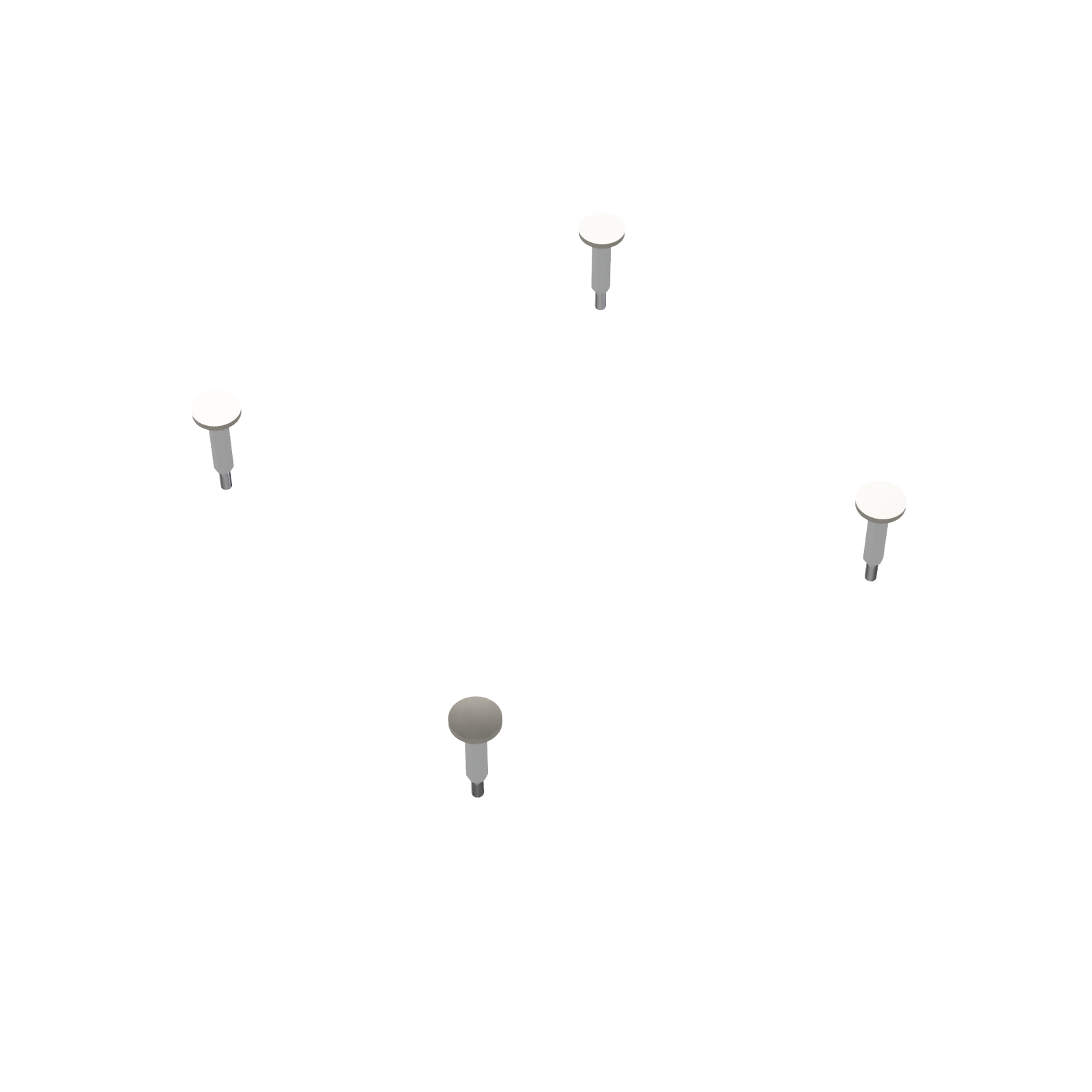

Magnetic Fixation

4 powerful neodymium magnets with threading and fine height adjustment ensure perfect, millimeter-precise panel alignment. Withstanding up to 15 kg of shear force, they are absolutely reliable and safe.

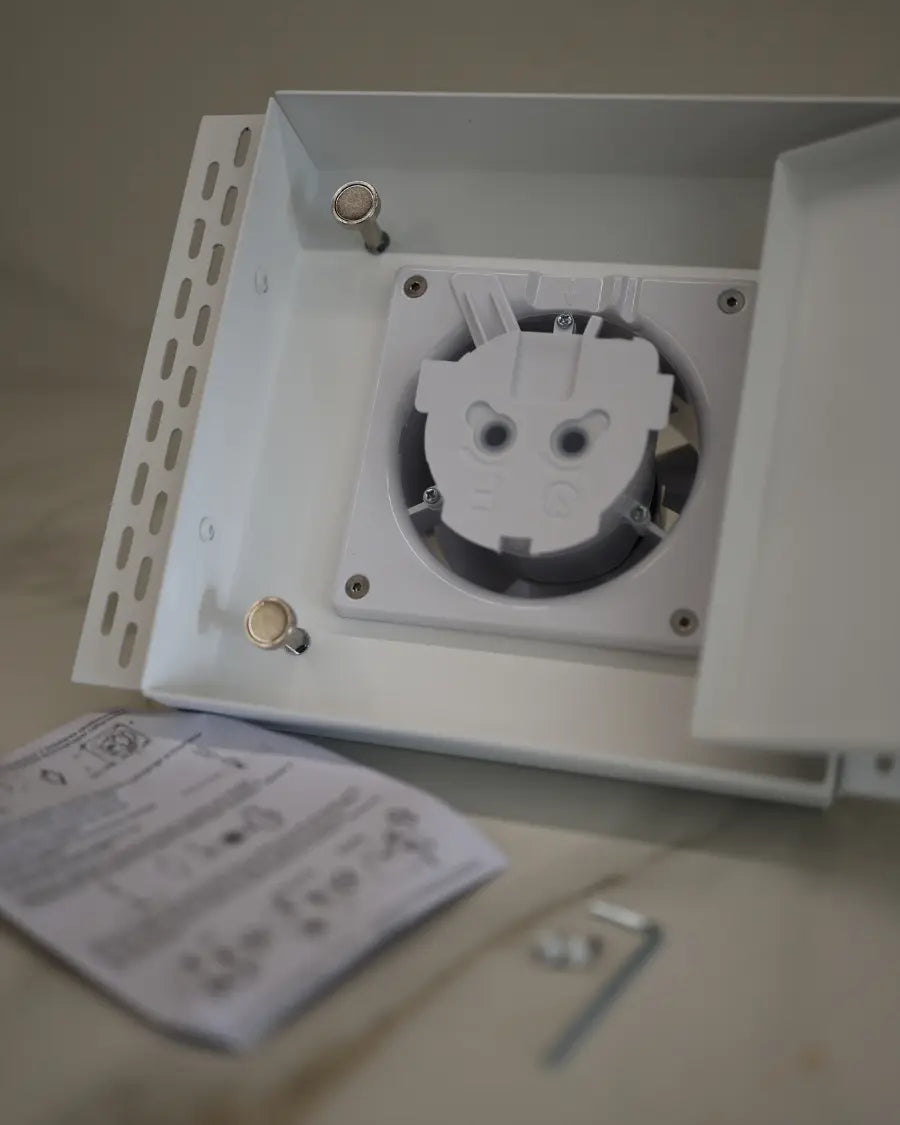

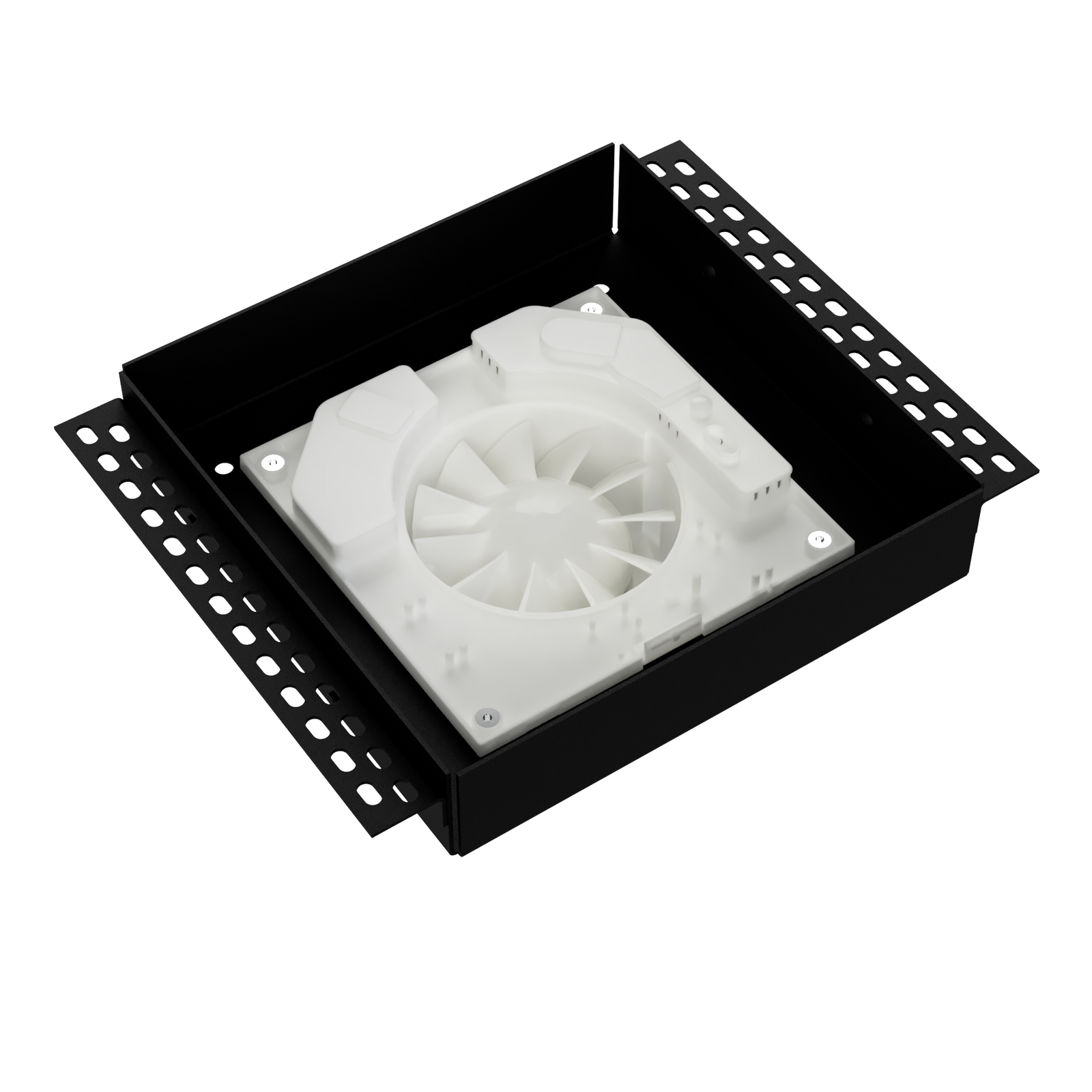

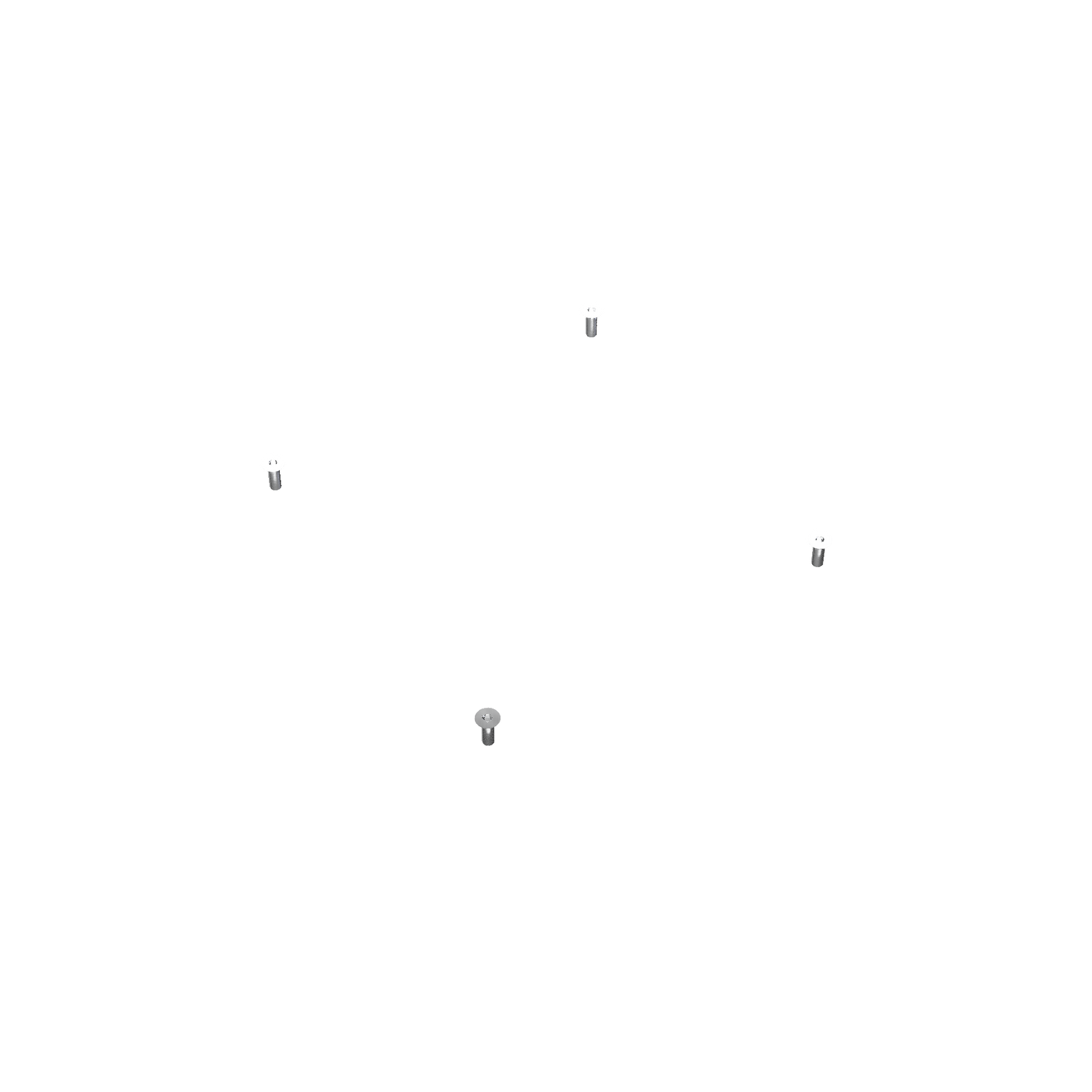

Independent Mounting

The fan is secured to the base with independent bolts. This allows you to easily remove the motor unit for cleaning or maintenance without dismantling the entire structure.

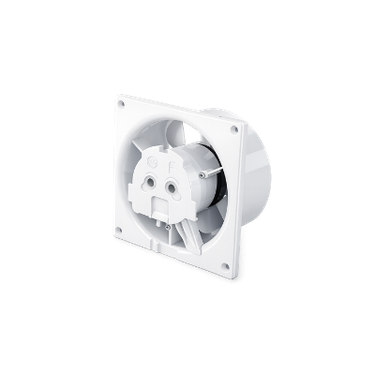

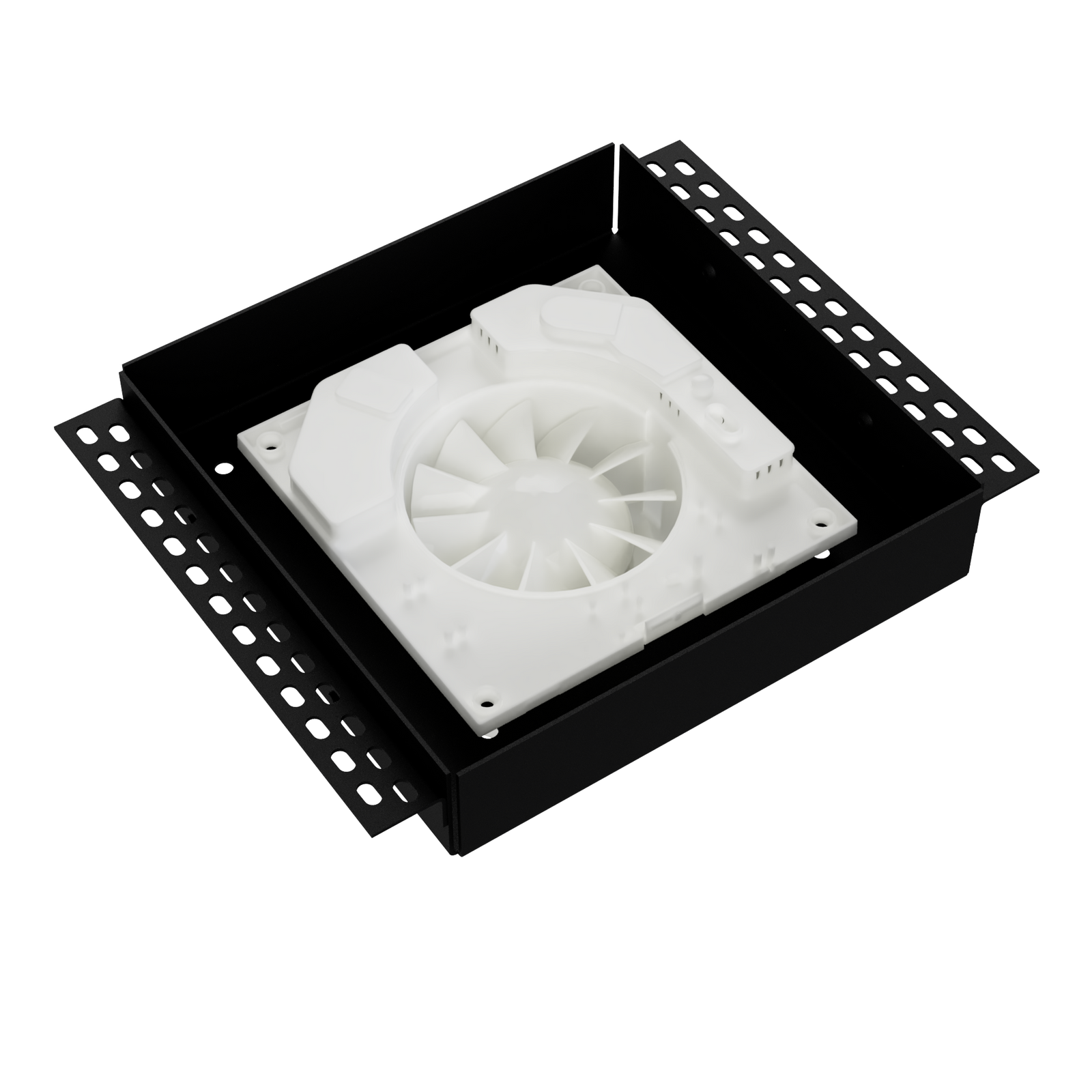

The Heart of the System

The core of the exhaust fan is a powerful and silent European motor, engineered for years of continuous, flawless operation.

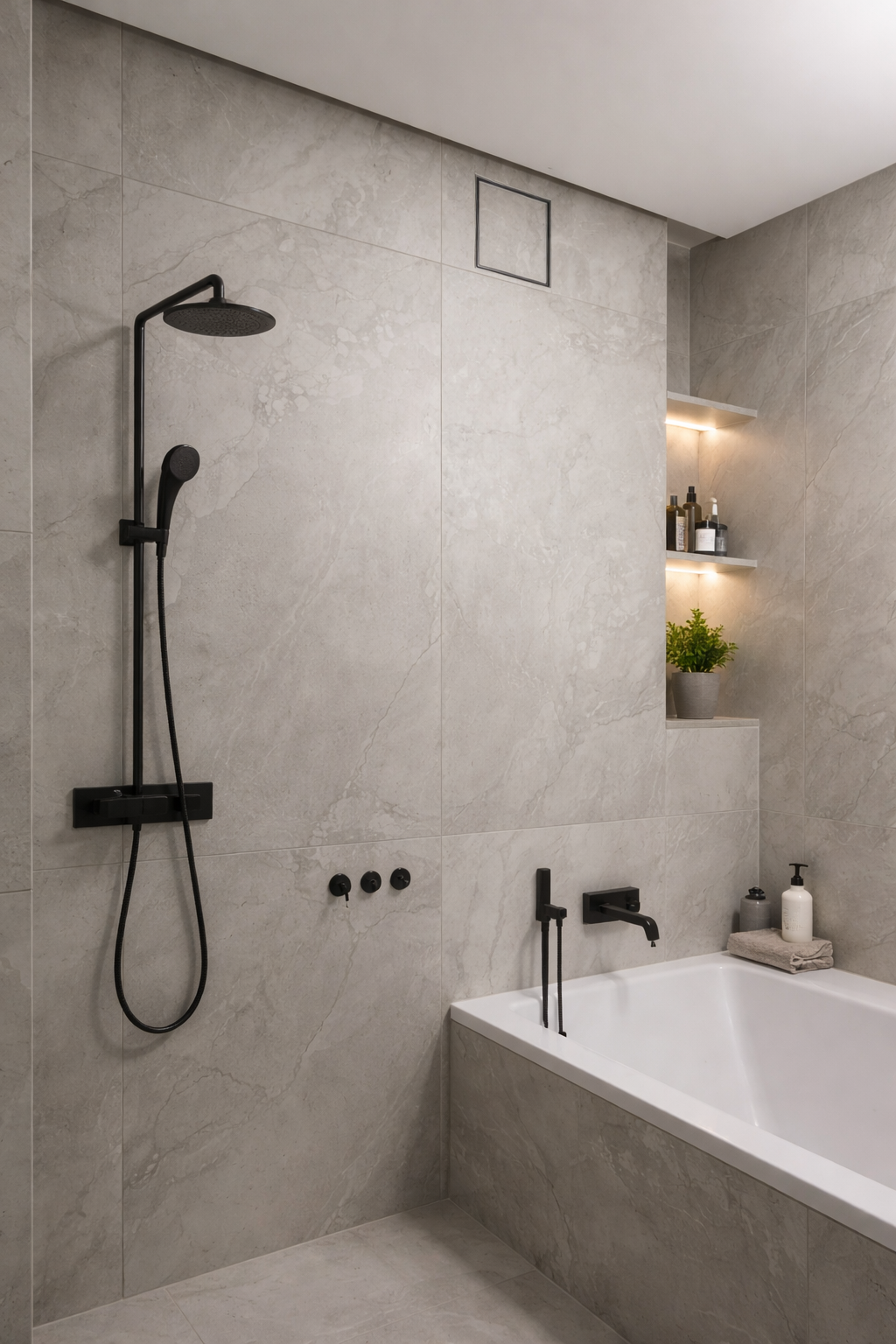

Upgrade Your Interior

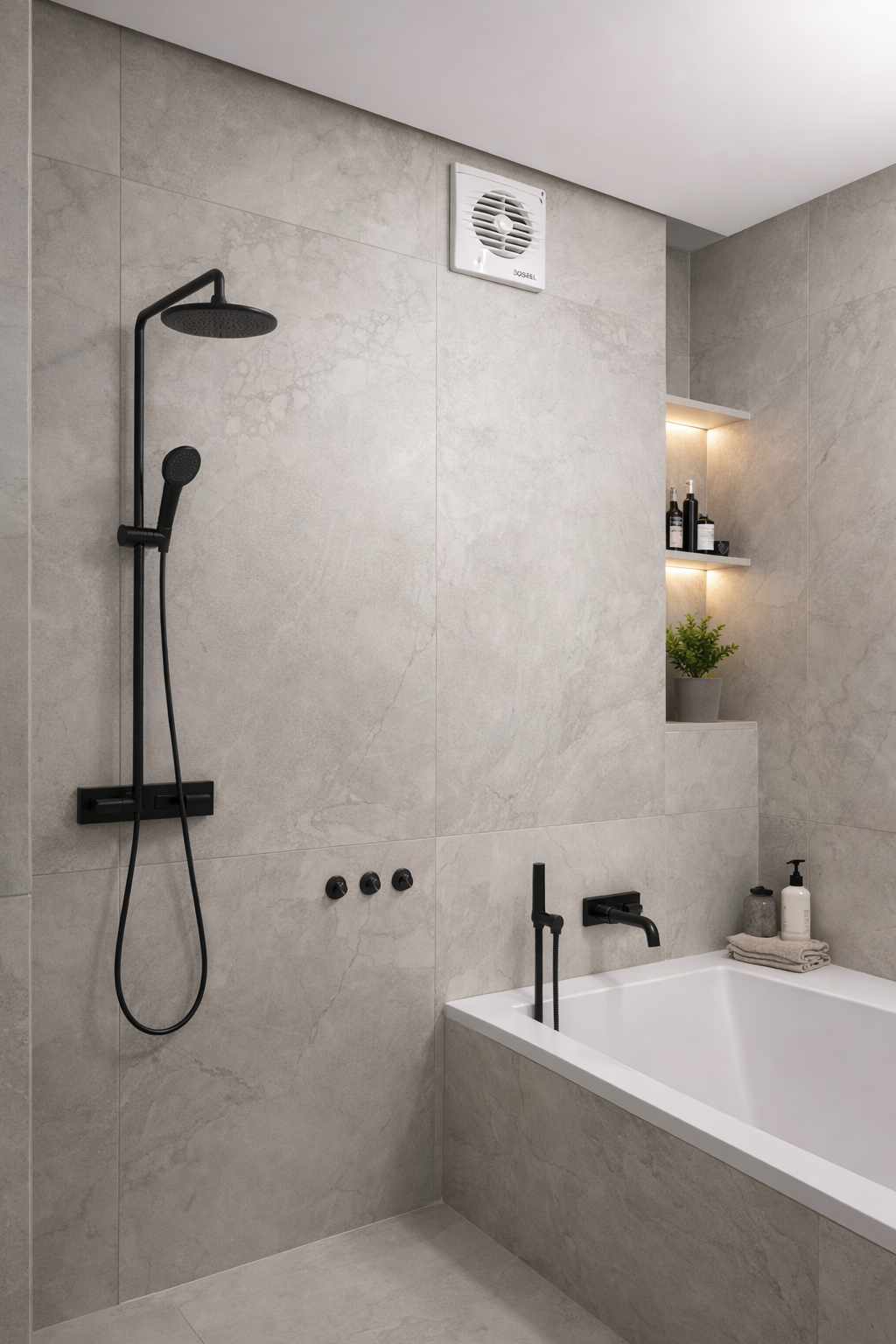

Standard extractor fans draw unwanted attention, accumulate dust rings, and ruin the flawless look of your premium porcelain stoneware and drywall finishes. The Gratka Hide invisible exhaust fan changes everything.
